Discover the Power of Adventure with the Cypress Fantom Electric Mountain Bike

General
Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
Max Speed: 28MPH by pedal, 20MPH by throttle
Range:up to 90 Miles by Pedal; 30+ Miles by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
Pedal Assist:5 Levels
Frameset
Frame: 6061 Aluminium, Removable Battery, Internal Routing
Fork:Hydraulic Suspension Fork with 60mm travel, with lockout
Wheels
Rim Material:Aluminum
Rim Size:26" 36H Front & Rear
Front Wheel Spokes:13G x 244/246mm, Black Stainless
Rear Wheel Spokes:12G x 217/219mm, Black Stainless
Tubes:Butyl Rubber, Schrader Valve
Hubs:Disc Nutted Front /Rear Axles
Tire: Kenda Fat Tires
Tire Size: 26" x 4.0"
E-system

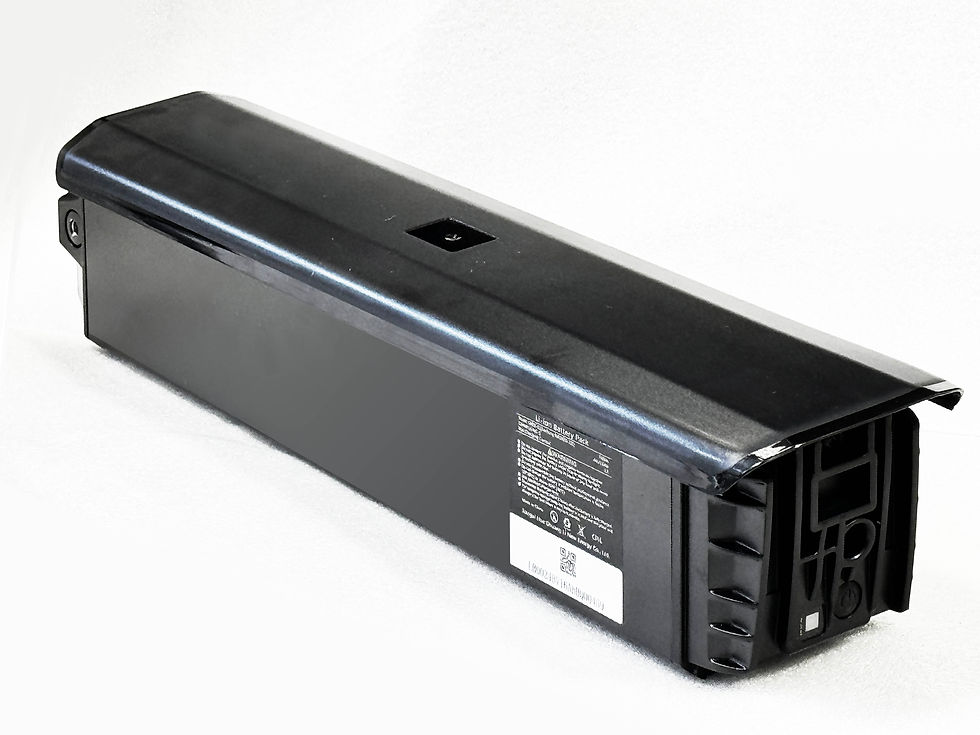

Battery:Removable Internal Lithium-ion Battery, 48V 16Ah, 768Wh, SAMSUNG Cells
Charger:48V 3Amp Charger, Approx. 8 Hour Charging, Aviation Connector. UL LISTED
Motor:Geared Hub Motor, Rated 750W, Peak 1000W, Max Torque 80NM
Controller: 48V 25A Peak
Display: Multifunctional Color-Screen Display
Pedal Assist: Cadence Sensor
Throttle: Thumb Throttle
Front Light:48V 10W LED Light, 30 LUX
Drivetrain
Shifter:Shimano 7-Speed RevoShift
Rear Derailleur:Shimano ARDTY500D 7-Speed, Long Cage
Crank & Chainring: 52T, 170mm Alloy Crank
Freewheel:Shimano 14-28T, 7-Speed freewheel
Pedal: Alloy Platform Pedals
Chain:KMC 124 Link, 7-Speed
Components
Saddle: Comfortable Wide Saddle
Seatpost:Forged Alloy, Ø30.4*350mm
Seat Clamp:Ø35mm Quick Release
Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 70mm, RISE: ±7°
Handlebar:Aluminum Ø31.8mm, Width 740mm
Headset:Sealed Bearing Headset
Grips:Nylon Lock-on, Ergonomic Comfort
Brake:Front & Rear Hydralic Disc Brakes, with180mm discs, with power-cut-off function
Brake rotor: 180mm, 1.9mm thick
Kickstand:Side Kickstand, Alloy, Rear Mount
Fenders:Plastic 26"x110mm
Rear Rack:Aluminum Alloy Rear Rack
Weight
Net Weight:33.1kg (72.97lb)  ( including battery)
Gross Weight:43.8kg (96.56lb)
Battery Weight:4kg (8.82lb)
Weight limit:136 kg (300 lb) Payload Capacity
Size
Product Size:1930x755x1110mm
Packing Size:1570x330x900mm
